Liquid Sodium Silicate
01 General Property
02 Synthesis Process

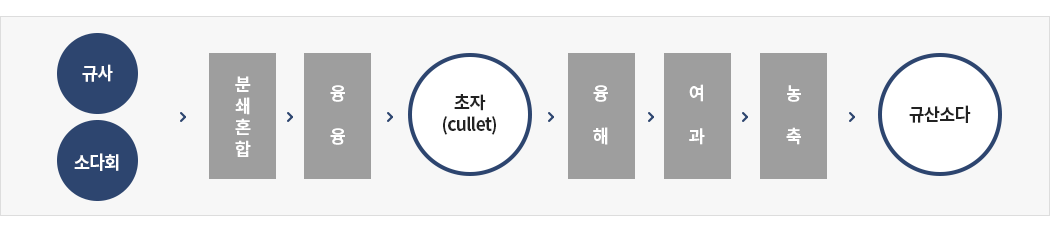

Indirect Method (Dry)① Adjust combination rate of sodium carbonate and quartz sand, Pouring into melting furnace

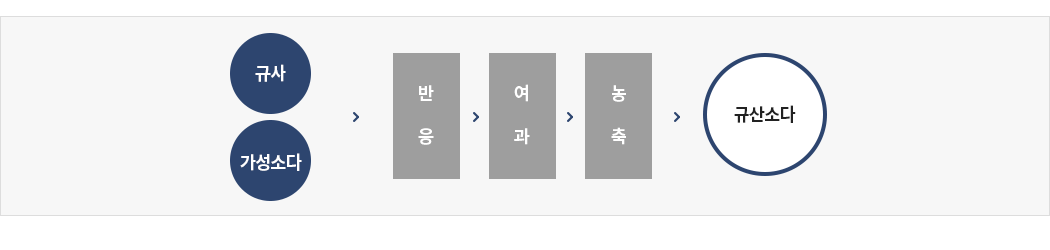

Direct method (Wet)① Adjust combination rate of NaOH and quartz sand, Pouring into reaction tank directly
03 Physico-chemistry Properties
1. CompositionLiquid Sodium silicate Chemical composition : Na₂O·nSiO₂·xH₂O Hydrated polymeric silicic acid is forming O-Si-O bonding by combined OH and Na, but it has very weak bonding strength with Na, because perfectly hydrate reaction of bonding
2. Specific GravityIf temperature is increasing, specific gravity is decreasing Baume degree measures at 20℃ Be(20℃) = [(20-t) × 0.04]
3. ViscosityAt same mole ratio, if solid content is increase, viscosity is increase At same solid content, if mole ratio is decrease, viscosity is decrease Even if mole ration is decreased that specific gravity is increasing, viscosity is increasing If temperature is increasing, viscosity is decreasing At same viscosity, if mole ratio is decreasing, specific gravity is increasing

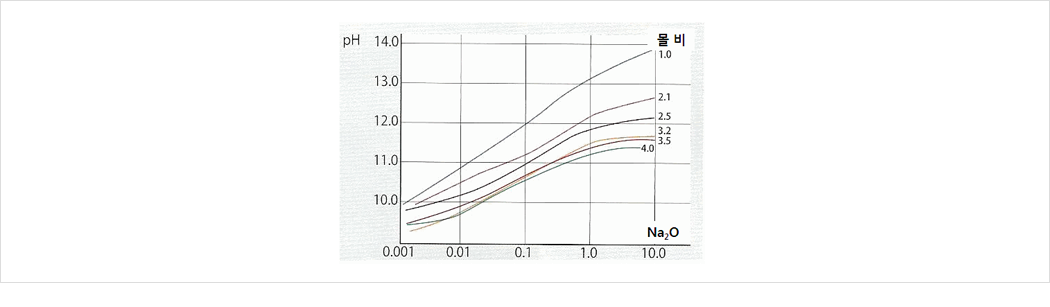

4. pHBuffer phenomenon at pH 11.5～13.0 If mole ratio is decreasing( content increase), pH is increasing
5. Freezing pointLiquid sodium silicate has -2.5℃ freezing point at mole ratio 3.3, solid content 38% 32℃ freezing point at mole ration 2.0, solid content 54% Frozen liquid sodium silicate forms orthorhombic phase, but if it is melt by heating, get recover ...properties of original state again
04 Treatment, caution
Sodium silicate is medicines of harmlessness that nontoxic chemical Only, If it is drink, harmful in human body, because is not food additive- When contact in skin, must washing by water.
|Application||Mole Ratio||Principle Property|
|Binding||Origin of silicic acid||Chemical reaction||Disperse emulsification||Neutralization
|Anhydrous silicic acid||3.3||○||○|
1. Casting BinderIt is use of gel formation of sodium silicate that used 2.1 - 3.2 mole ration. widely use of Silica Gel formation process that adds sodium silicate solution and CO2 to the iron-casting sand, because it has many advantage of low equipment and labor cost, less space, bed smell does not happen.

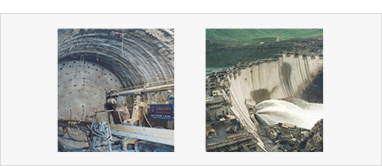

2. Soil strengthningMain raw material of waterproof agent for construction industry. Sodium silicate solution applied to underground water treatment of high water content ground and soil improvement etc.
3. Detergent (Soap, Synthetic Detergent)Act by trillion Builder of cleaning material and does softening action of hard water. Directly Harmonized with alkali in liquid sodium silicate and CO₂ that is dissolution acidic carbonate while it is making micro-precipitate of soft gel phase reaction with Calcium or Magnesium salt, and floating in solution. It is used as Buffer action and Suspension Emulsifying, achieve corrosion prevent operation of aluminum, zinc etc in detergent.
4. Ceramic BinderLiquid sodium silicate that has 2.0-3.4 mole ratio makes soaks surface easily and permeation in limit occur and it has properties of matter of suitable viscosity, it is used in adhesion of paper box and asbestos paper tube product. Also recently, study has been lively that matched new inorganic adhesive by several kind of mixed organic, inorganic material
5. Paper making, PulpLiquid sodium silicates use for stabilizer of hydrogen peroxide in occasion of pulp, paper bleaching and black color removing agent
6. CementIt is use of cement binder for acid, fire proof and adhesion of refractory.
7. Silica Sol, Water TreatmentIf sodium silicate neutralize by acid, polymerization occur by silicic acid released and silica sol formed that has negative charge by micro-particle. This silica sol is use of coagulate agent for natural water and waste water.
8. Chemical ProductSilica gel formed by acidification of sodium silicate, and also, micronized sodium silicate powder formed by acidification of sodium silicate that is called "white carbon" and it is widely use of rubber filler
9. Sodium silicate widely use of synthesis of metallic silicic acid, raw material of meta sodium silicate, and textile ceramic etc.
Korea industrial standard KSM 1415
|Specific Gravity (20℃)||1.690 ↑||1.590 ↑||1.380 ↑||1.260 ↑|
|Insolubility in water(%)||0.2 ↓||0.2 ↓||0.2 ↓||0.2 ↓|
|Na2O (%)||17 - 18||14 - 15||9 - 10||6 - 7|
|SiO2 (%)||36 - 38||34 - 36||28 - 30||23 - 25|
|Fe2O3 (%)||0.05 ↓||0.05 ↓||0.03 ↓||0.03 ↓|
